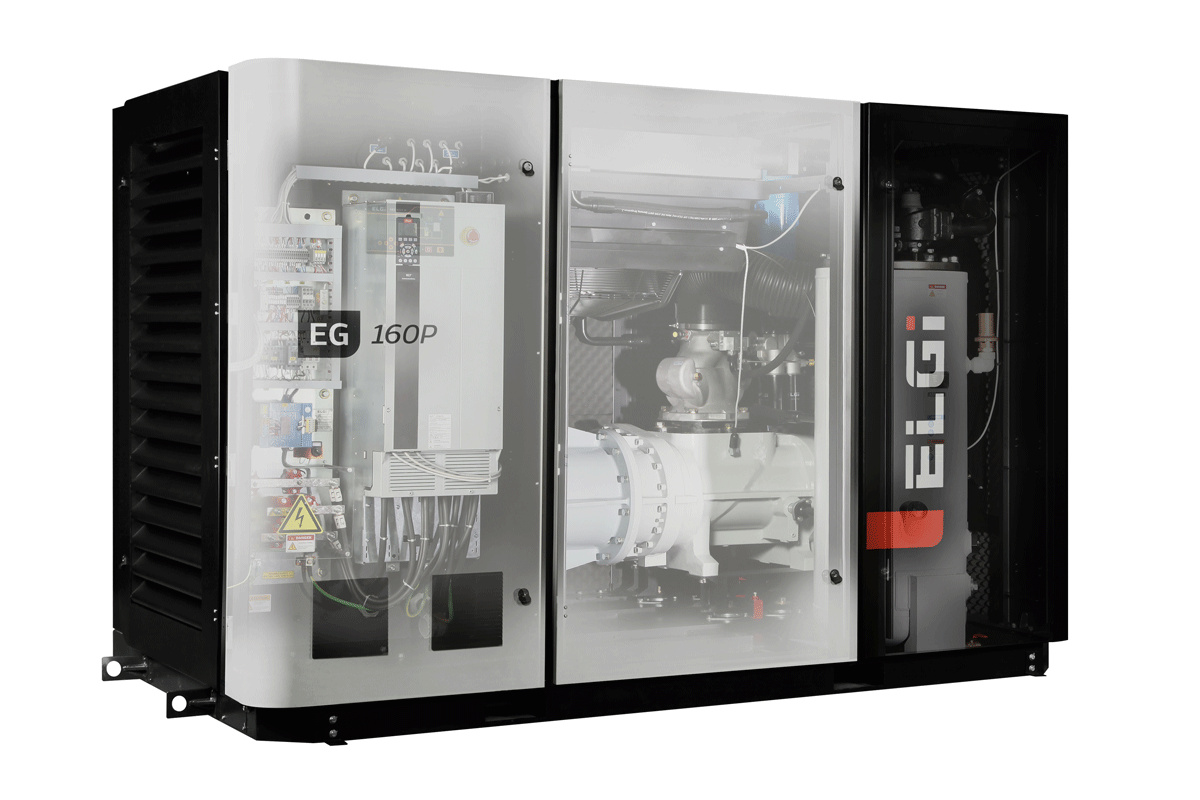

EG Series Screw Air Compressors | ELGi| 125-200 Hp

ELECTRIC LUBRICATED ROTARY TYPE

The “EG Premium” is the new generation compressor series which represents the reflection of the current market requirements on Energy efficiency, lesser maintenance and higher reliability. These compressors are designed and manufactured in compliance with the Global standards like UL, ASME, CE, GB and others and significantly reduce the operating costs and provide cost savings with quicker return on investment

ELGi’s airends are equipped with in-house developed eta-V profile rotors, with 4/5 lobe combination, the rotors are designed to run at optimum speeds. This unique design reduces pressure losses and increased efficiencies. These eta-V profile rotors ensure energy-efficient compressed air supply for all demanding applications. ELGi is one of the few companies capable of manufacturing wide range of airends and compressor packages in the world. ELGi’s patent portfolio is a testament to the company’s continuous research and innovation capability. So go ahead. Judge the EG Series by its size, by its appearance, by the way it's built. Even by how it's supported. When you do, you'll see that ELGi is the right partner for your business.

EG Series screw air compressors are the coolest running compressors on the market, at 45° C (115° F). The machine is designed into four Thermo-Zones to ensure maximum UpTime. The simplistic design of the EG Series is key to delivering maximum uptime. By utilizing fewer parts than others, we build in greater dependability. And it’s all by design.

Best-in-class maintenance and operating cost
Lowest oil carryover less than 1ppm in the industry
Best-in-class warranty program
Outstanding reliability stemming from slow operating speeds and low operating temperatures
Grouped service points ensure easy access to components for maintenance
Optimized cooler design and cooling fans ensure low running temperatures
Versatile neuron II micro controller provides easy diagnostics of system parameters
Reliable and low running cost
Models available as bare units/side located drier/variable speed drive variants
Energy efficient eta profile air ends & gear drive to reduce energy consumption
Wide range of accessories – vertical air receivers, dryers, automated supply side controller and variable frequency drives to meet diverse operating conditions

Cement
Textiles
Paper and Pulp
Machine Tool Shops
Steel Making
Food Processing
Automotive

Model	Power		Capacity		Working Pressure		Max Pressure		Weight		Noise Level
60 Hz	HP	kW	cfm	m³/min	psi g	bar g	psi g	bar g	Lbs	Kg	dB(A)
EG90-100	125	90	604	17.10	100	7	115	7.9	6197	2811	75
EG90-125	125	90	536	15.18	125	8.5	140	9.7	6197	2811	75
EG90-150	150	90	478	13.54	150	10	165	11.4	6197	2811	75
EG110-100	150	110	720	20.39	100	7	115	7.9	6395	2900	75
EG110-125	150	110	630	17.84	125	8.5	140	9.7	6395	2900	75
EG110-150	150	110	570	16.14	150	10	165	11.4	6395	2900	75
EG160-100	200	160	975	27.61	100	7	115	7.9	7840	3556	75
EG160-125	200	160	850	24.07	125	8.5	140	9.7	7840	3556	75
EG160-150	200	160	778	22.03	150	10	165	11.4	7840	3556	75
Note:
Free Air Delivery (FAD) is tested as per ISO 1217 : 2009 Annex.C Ed.4.
All models are available in air-cooled and water-cooled variants.
Max working pressure of all models is 15 psi g above the working pressure i.e. For an E 90-100 GS working pressure is 100 psi g and max. working pressure is 115 psi g.
FAD indicated is for the full package measured at the outlet after moisture separator.
Sound level measured as per ISO 2151 Second Edition at 1m distance in field conditions +/-3dB(A).
Due to continuous improvements the specifications are subject to change without prior notice.
